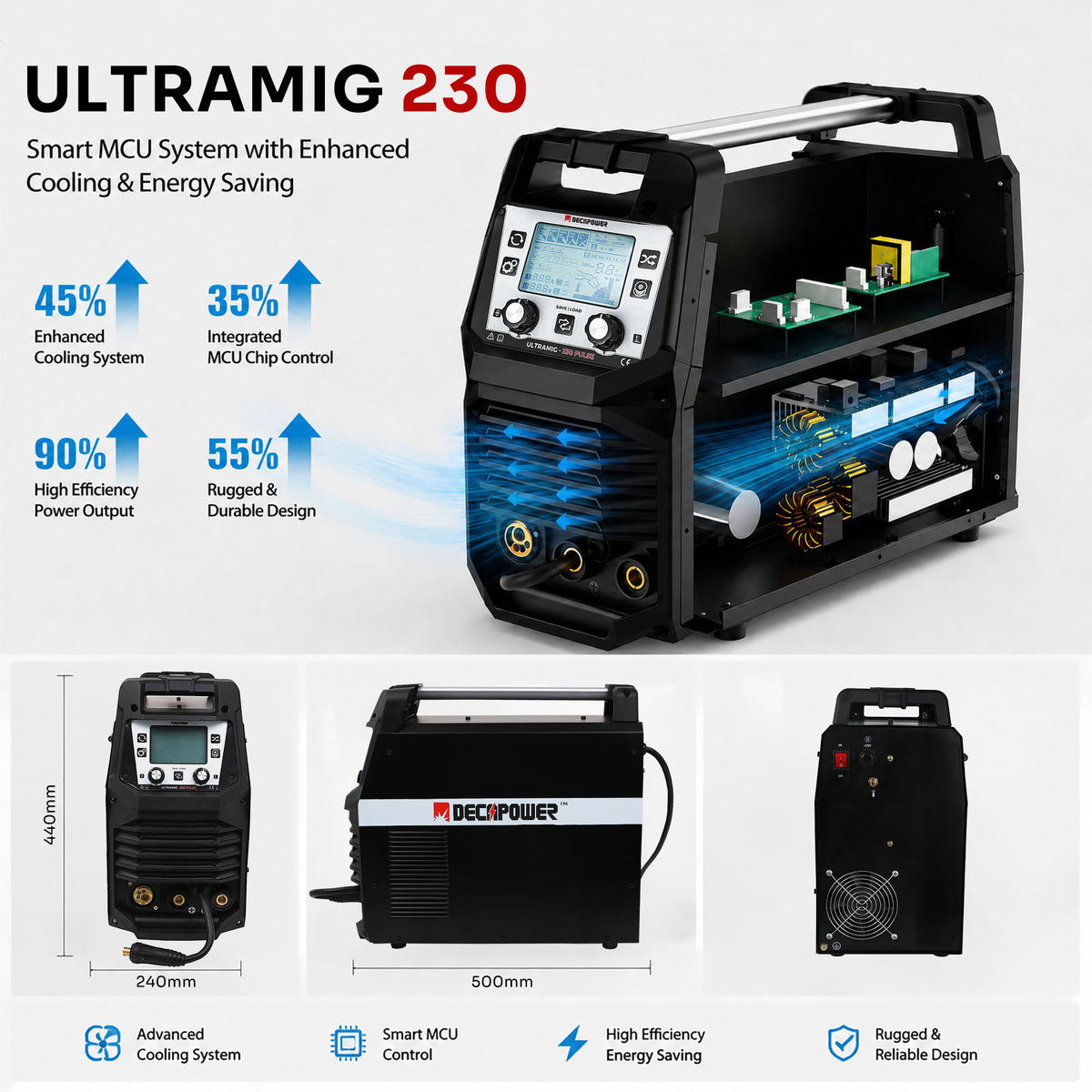

  • ULTRAMIG-230 internal components and cooling airflow illustration with front, side and rear views
  • ULTRAMIG-230 welding demonstration with Double-Pulse MIG and standard MIG weld bead comparison
  • Welding applications in workshops, factories, farms, backyards, outdoor areas and construction sites
  • ULTRAMIG-230 LCD control panel with welding settings, adjustment knobs and job memory save/load button
  • ULTRAMIG-230 welding mode displays for Pulse MIG, Double-Pulse MIG, Synergic MIG, Manual MIG, Stick/MMA and DC Lift TIG
  • ULTRAMIG-230 wire compartment with 1 kg and 5 kg spool options and a 4-Roll Wire Feeder
  • ULTRAMIG-230 reference charts for welding materials, wire diameters, current ranges and process settings
  • ULTRAMIG-230 rear panel with cooling fan, gas inlet and power cable supplied without a plug
1 10

ULTRAMIG-230 230A Double-Pulse Aluminum MIG Welder

ULTRAMIG-230 230A Double-Pulse Aluminum MIG Welder

$534.38 USD
$644.10 USD $534.38 USD
$534.38 item
Sale Sold out
Taxes included. Shipping calculated at checkout.

Produce cleaner, TIG-like aluminum welds with less spatter and lower heat distortion.

✅4-Roll Wire Feeder: Delivers more consistent aluminum wire feeding, helping reduce wire slippage and birdnesting.

✅Double-Pulse MIG: Helps control heat input and reduce spatter for cleaner welds with a more uniform stacked-dime appearance.

✅10 Job Memory Slots: Save and recall your preferred welding settings for repeat jobs, reducing setup time.

✅Synergic Control: Automatically matches welding parameters based on your selected material and wire diameter, making setup faster and easier.

Important: Power plug is not included. The correct plug must be installed according to your local electrical code by a qualified electrician.

View full details

Package Contents

  • ULTRAMIG-230 Welding Machine × 1
  • 300 A Work Clamp with 3 m (9.84 ft) Cable
  • 300 A Electrode Holder with 2 m (6.56 ft) Cable
  • Slag Chipping Hammer — 300 g
  • Copper-Plated Steel Wire Brush
  • V-Type Wire Feed Rollers — 0.8–1.0 mm × 2 (Pre-installed)
  • U-Type Wire Feed Rollers — 1.0–1.2 mm × 2
  • K-Type Wire Feed Rollers — 0.8–1.0 mm × 2
  • 25AK MIG Torch — 3 m (9.84 ft)
  • PTFE Wire Liner — 3.2 m
  • Contact Tips — 1.2 mm × 5 / 1.0 mm × 5 / 0.8 mm × 5
  • MIG Gas Nozzle
  • Gas Hose — 2 m
  • Hose Clamp

Specifications and Parameters

  • Model: ULTRAMIG-230
  • FUNCTION: Double Pulse MIG / PULSE MIG / SYN(MIG) / MAN(MIG) / LIFT TIG / MMA
  • Input Voltage: 1ph 230V or Bi-Volt 127V/230V is available
  • Current output Max: MIG=230A / TIG=230A / MMA=200A
  • No-load voltage：75V
  • Sun Function(MIG): Inductance / Pre-Gas / POST-Gas / Slope wire feeding / Burn-Back
  • Sun Function(MMA): Hot Start / Arc Force /Anti Stick / VRD
  • Machine weight: 15.1KG
  • Package weight:23KG
  • Duty Cycle:
    MMA = 60%@200A / 100%@155A
    MIG/TIG = 60%@230A / 100%@178A
ULTRAMIG-230 photo collage showing unpacking, welding setup and weld bead examples

ULTRAMIG-230 FEATURES

The machine is equipped with Pulse and Dual Pulse MIG functions, as well as Synergy MIG, Manual MIG, Flux MIG，Stick MMA, and LIFT DC TIG functions.

Pulse welding reduces the heat and minimises spatter, without compromising penetration, so it's perfect for thin and soft materials like aluminium.

It can weld a variety of metals such as aluminium, stainless steel, copper, carbon steel, iron, nickel and alloys, while the high no-load voltage allows the machine to easily weld cellulose electrodes.

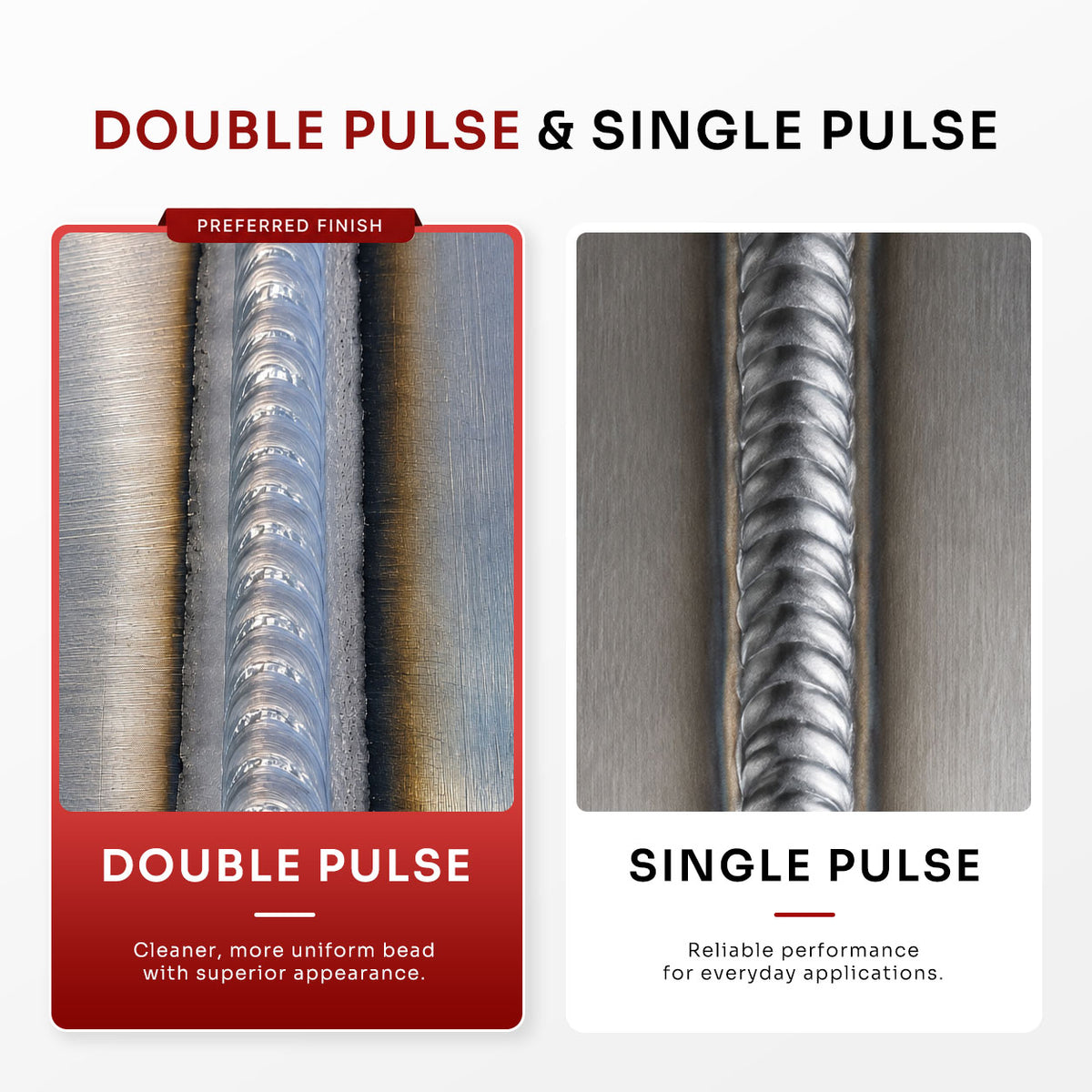

  • Side-by-side comparison of Double-Pulse MIG and Pulse MIG weld bead appearance

    Pulse and Double Pulse

    The dual pulse MIG function has many advantages over short circuit MIG: for example, it can bring more beautiful welds, improve work efficiency, and reduce spatter. In particular, it can weld aluminum more easily.

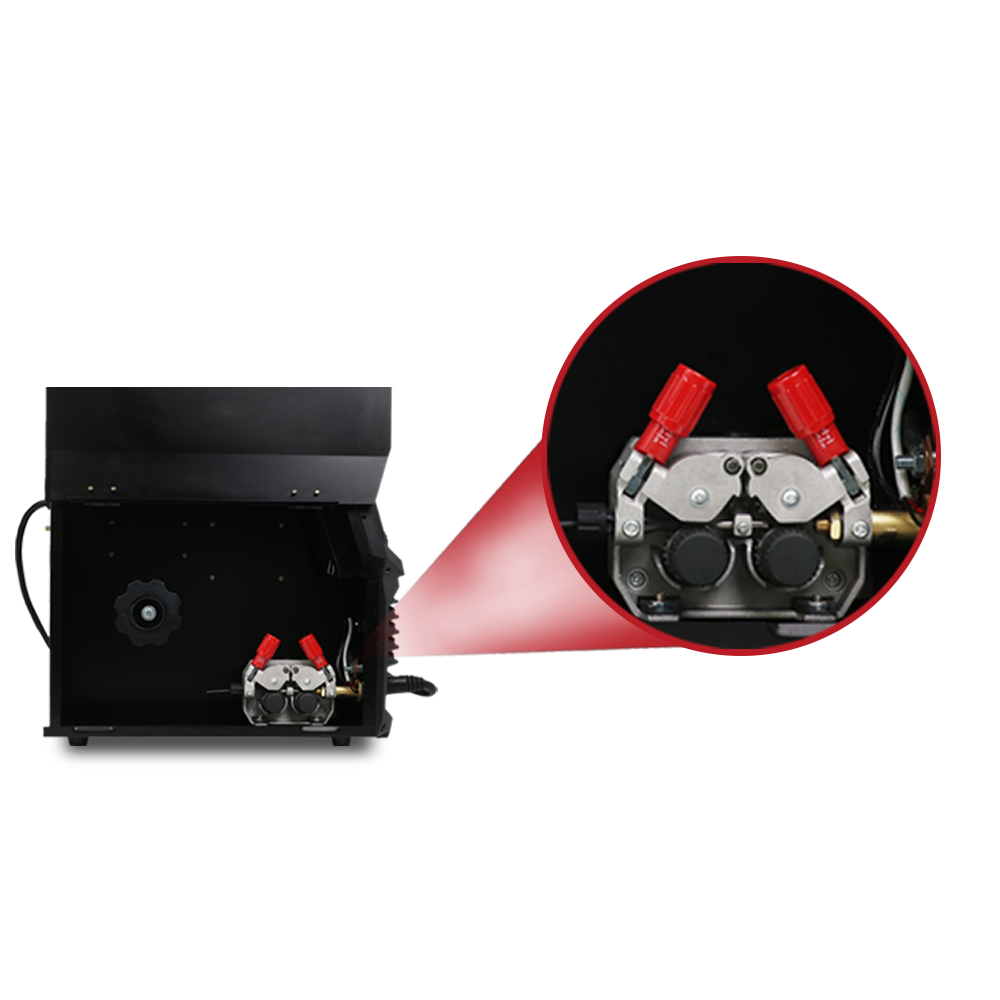

  • Close-up of the ULTRAMIG-230 4-Roll Wire Feeder inside the open wire compartment

    Powerful Wire Feeding System

    ULTRAMIG-230 is equipped with a four-wheel wire feeder with stronger power and smoother wire feeding. It makes the welding process more stable and smooth, and improves work efficiency. It is especially good when welding aluminum.

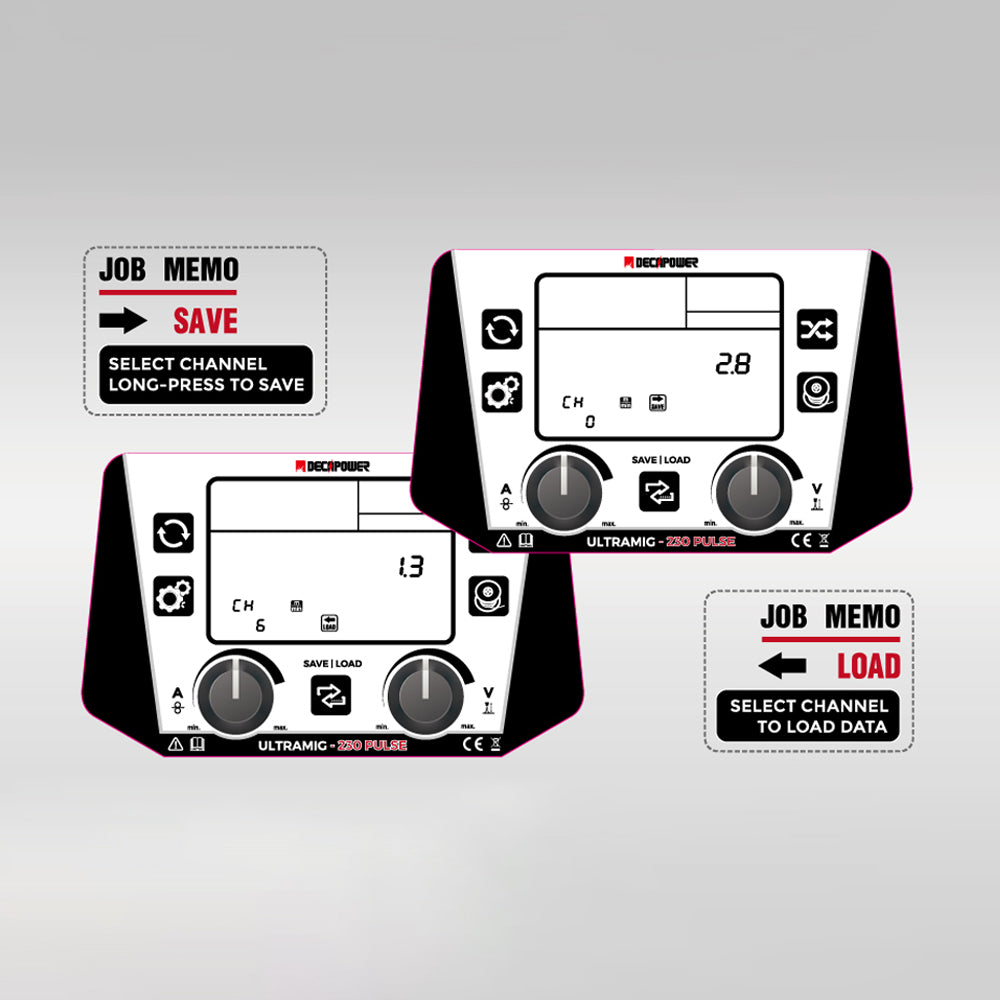

  • ULTRAMIG-230 Job Memory guide showing channel selection and welding parameter save/load controls

    JOB MEMO

    The ULTRAMIG-230 offer upto 10 channel for saving/loading the customized parameter,each channel can be re-written according to your welding habit.
    Once parameters saved, you can quick-access to the corresponding channel through loading the data.

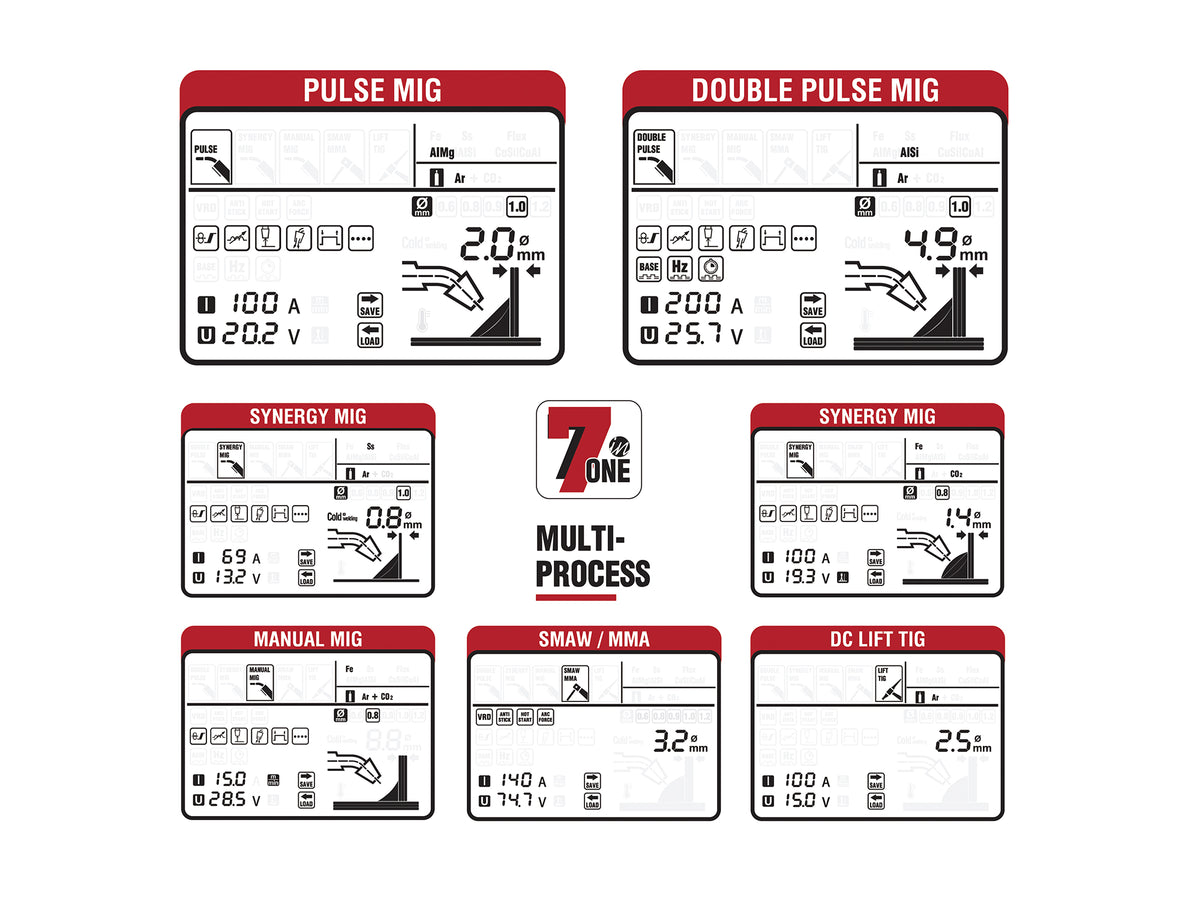

ULTRAMIG-230 screen examples for Pulse MIG, Double-Pulse MIG, Synergic MIG, Manual MIG, Stick/MMA and DC Lift TIG

Functions：Synergic Pulse MIG


Ultramig230 multi‑process welder covers 7 welding modes including Pulse MIG, Double Pulse MIG, Synergy MIG, Manual MIG, MMA and DC Lift TIG. Thanks to synergic control, it auto‑adjusts current, voltage and wire speed based on material and wire size. Ideal for aluminum, carbon steel and stainless steel for reliable workshop welding results.

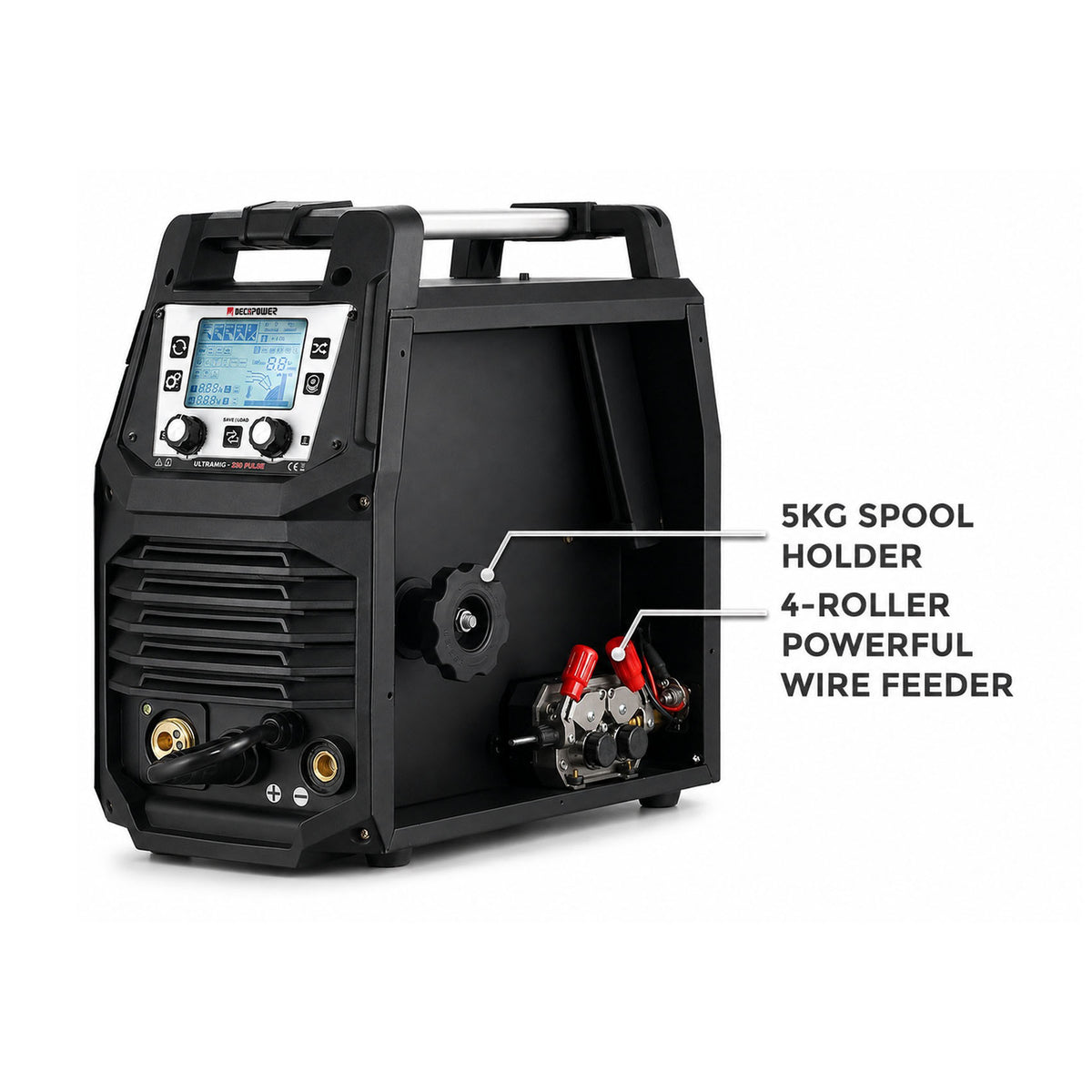

ULTRAMIG-230 open side compartment showing the 5 kg spool holder and 4-Roll Wire Feeder

Robust 4‑Roller Wire Feeder System


Equipped with heavy‑duty 4‑roller wire feeder and 5kg wire spool holder. Delivers stable and consistent wire feeding for aluminum, stainless steel and mild steel wires, reducing wire slipping and ensuring smooth welding performance.

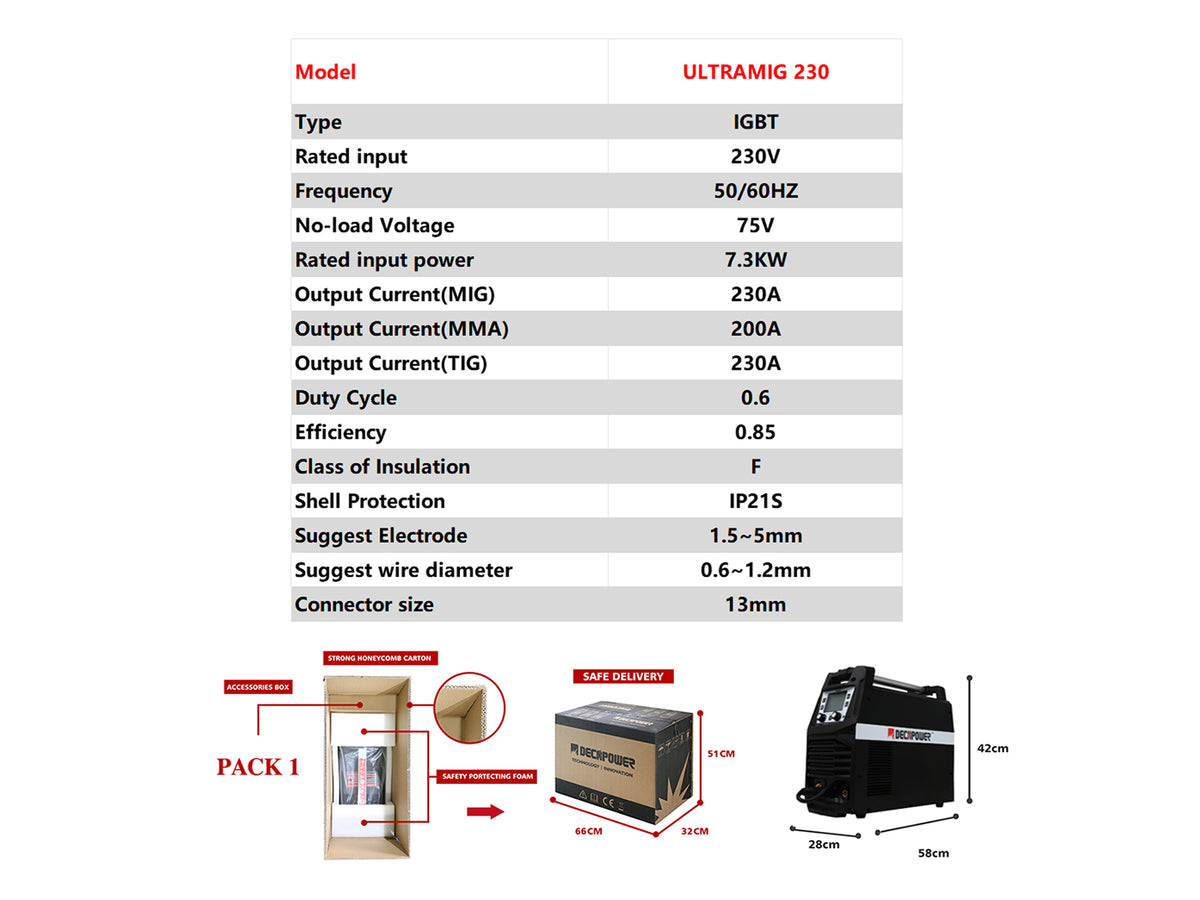

ULTRAMIG-230 technical specifications chart with machine dimensions and protective shipping packaging

Full Technical Specifications


The Ultramig 230 IGBT welder runs on 230V 50/60Hz input power with 7.3kW rated input power. It offers up to 230A MIG & TIG output current and 200A MMA output current, supported by 0.6 duty cycle and 0.85 efficiency. Rated IP21S for workshop‑grade protection, it accepts 0.6‑1.2 mm welding wire and 1.5‑5 mm electrodes. The diagram also shows precise machine dimensions and export‑standard carton packing details for your logistics and shipment planning.

Functional Guidance

ULTRAMIG-230 VIDEO

See the ULTRAMIG-230 in Action

View all
1 3
View all

FAQ

What input power does the ULTRAMIG-230 require?

The standard catalog configuration is single-phase 230V; bi-voltage versions may be configured, with rated input power of 7 kVA.

Which welding processes does the ULTRAMIG-230 support?

It supports manual MIG/MAG, synergic MIG, pulse MIG, flux-cored MIG, MMA and Lift TIG.

What wire feeder does the ULTRAMIG-230 use?

It uses a four-roll feeder with wire speed up to 15 m/min for stable wire delivery.

What materials can the ULTRAMIG-230 weld?

It is suitable for carbon steel, stainless steel, aluminum and copper with suitable wire and gas.

Does the ULTRAMIG-230 support pulse MIG welding?

Yes. The ULTRAMIG platform supports single- and double-pulse welding.

What applications are recommended for the ULTRAMIG-230?

It is recommended for professional workshops, auto repair and metal fabrication.

What are the size and weight of the ULTRAMIG-230?

The catalog lists 50 x 24 x 44 cm and approximately 16 kg.
