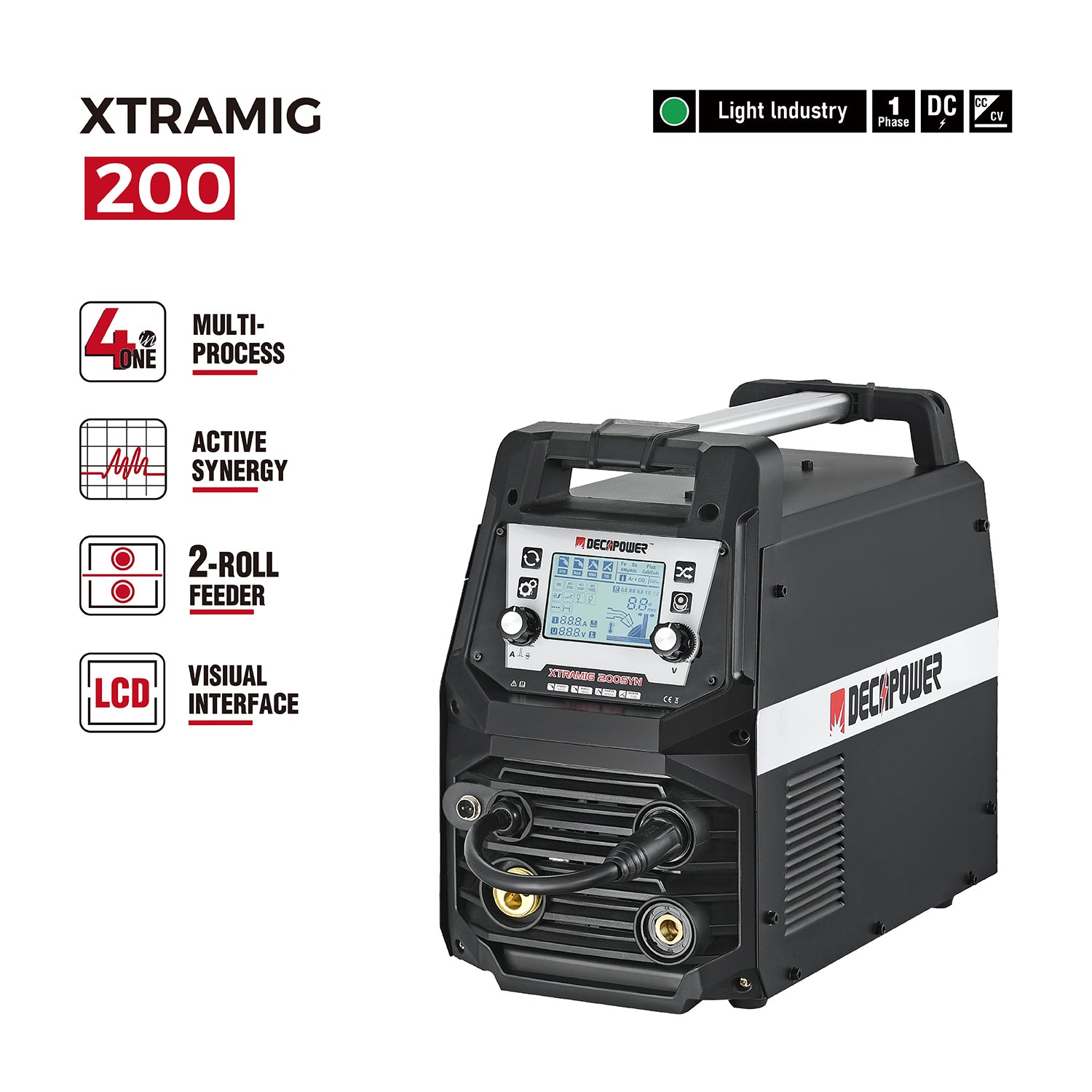

XTRAMIG 200Amps Multi Process Synergy MIG Welder （EU PLUG / 220V）

XTRAMIG 200Amps Multi Process Synergy MIG Welder （EU PLUG / 220V）

$445.41 USD
$652.01 USD $445.41 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
PACK
  • Multi-Function XTRAMIG integrates MIG synergistic setting & MIG manual setting (Gas &Gasless MIG welding), stick MMA welds and Lift TIG welds. Suitable for welding most metals (stainless steel, carbon steel, iron, copper, aluminum).
  • EASY to Use In SYN mode, the machine can automatically match the current, voltage and recommended welding thickness, which is very friendly to novices. At the same time, multiple Sub functions are conducive to better control and help welding.
  • Suitable for home maintenance, DIY, and light industrial production.Can be powered by a generator for greater convenience
View full details

Package Include

  • Standard:
    300A Grounding Clamp(wire 2 meters / 6.56ft)
    200A Electrode Holder(wire 2 meters / 6.56ft)
    15AK MIG Torch(3 meters / 6.56ft)
    Brush
    V type Roller 0.6/0.8mm(installed)
  • PACK 1: Standard+
    0.6mm tips *5
    0.8mm tips*5
    1.0mm tips*5
    0.8/1.0mm V type roller
    0.6/0.8mm K type roller
    0.8/1.0mm K type roller
    1pc Nozzle Holder
    1pc Protecting Nozzle
  • Pack 2 : PACK 1+ TIG Torch
  • Pack 3 : PACK 2+1KG/0.8mm Flux cored wire

Specifications and Parameters

  • Model: XTRAMIG-200
  • FUNCTION: SYN(MIG) / MAN(MIG) / LIFT TIG / MMA
  • Input Voltage: 220V
  • Current output Max: MIG=200A / TIG=200A / MMA=200A
  • No-load voltage：63V
  • Sun Function(MIG): Inductance / Pre-Gas / POST-Gas / Slope wire feeding / Burn-Back
  • Sun Function(MMA): Hot Start / Arc Force /Anti Stick / VRD
  • Machine weight: 12.35KG
  • Package weight:17.5KG
  • Duty Cycle: 60%@200A / 100%@155A
  • The machine is equipped with a European 16A plug. If working at high intensity, please consider changing the plug.

XTRAMIG-200 FEATURES：

  • Multifunctional: MIG Synergistic & Manual, Stick MMA, LIFT DC TIG.
  • Multi-purpose: can weld aluminum, stainless steel, carbon steel, iron, copper, nickel and alloys
  • EASY to use: The Syn setting will automatically match the current and voltage and give the recommended welding thickness, which is easy to use and friendly to beginners.
  • VISUAL INTERFACE:EASY-TO-UNDERSTAND VISUAL INTERFACE WITH 4- INCH LCD ensures proper machine setup and parameter selection, reducing setup time and increasing weld time.

  • SYNERGY

    XTRAMIG-200 has the most complete synergy mode. In addition to the matching of current and voltage, the screen will also give a recommended welding thickness.

  • Thin plate welding

    When the recommended thickness displayed on the screen is < 1mm(MIG mode), "Cold Welding" icon will light up to reduce heat output and help with thin plate welding.

  • Protect

    The machine has built-in overload, overheat and overcurrent protection. Makes it safer to use.
