FUSION PMCT-205 6-in-1 Welder and Plasma Cutter (220V / EU Plug)

Name: FUSION PMCT-205 6-in-1 Welder and Plasma Cutter (220V / EU Plug)
Brand: DECAPOWER
Price: 565.00 USD
Availability: OutOfStock

2 total reviews

$565.00 USD

~~$632.80 USD~~ $565.00 USD

$565.00 item

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

The DECAPOWER FUSION PMCT-205 combines synergic MIG, manual MIG, pulse MIG, HF TIG, MMA stick welding and 50A plasma cutting in one compact 220V machine. Designed for garages, repair shops, light fabrication and maintenance work, it features a 4-inch LCD interface and a four-roll wire feeder for stable steel, stainless-steel and aluminum wire feeding.

View full details

PACKAGE INCLUDE

Machine *1
300A Grounding Clamp(wire 2 meters / 6.56ft)
200A Electrode Holder(wire 2 meters / 6.56ft)
15AK MIG Torch(3 meters / 10ft)
V type Roller 0.8/1.0mm(installed)
K type Roller 0.8/1.0mm
U type Roller 1.0/1.2mm
PT31 Cutting Torch(4 meters / 13.12ft)
WP-26 TIG Torch(4 meters / 13.12ft)
Air regulator
Gas quick connection
Teflon hose (3.2 meters)
Gas pipe(2 meters)

Specifications and Parameters

Model: FUSION PMCT-205
FUNCTION: SYN(MIG) / MAN(MIG) / PULSE(MIG-only Aluminum) / HF TIG / HF CUT /MMA
Input Voltage: 220V
Current output Max: MIG=200A / TIG=200A / MMA=180A / CUT=50A
No-load voltage：56V
MIG Sub-functions: Inductance / Pre-Gas / POST-Gas / Slope wire feeding / Burn-Back
Torch Mode: 2T/4T
Machine weight: 16.25KG
Machine Size: 58*28*42cm
Package weight:26.5KG

World map showing DECAPOWER welding reviewers and content creators across multiple countries

PMCT-205 FEATURES

Multifunctional: MIG Synergistic & Manual, Stick MMA,HF TIG. Multi-purpose: can weld aluminum, stainless steel, carbon steel, iron, copper, nickel(alloys) and cutting.
EASY to use: Featuring the programming of WELD SYNC, the automatic parameter setting technique, you'll start welding quickly and accurately, The Syn setting will automatically match the current and voltage and give the recommended welding thickness.
Applications: DIY, Metal workshops, Construction Industry, Agriculture, Repair and maintenance.

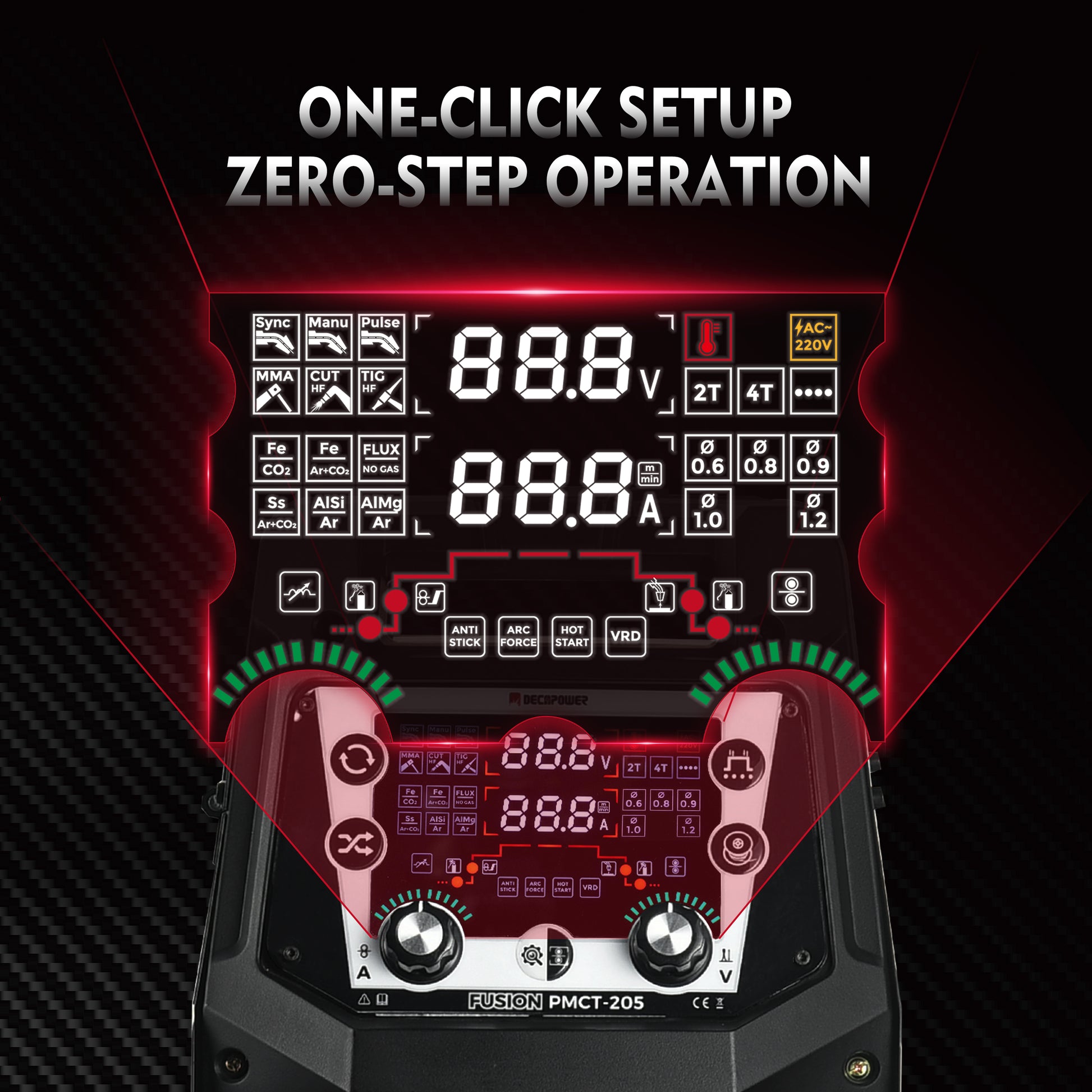

VISUAL INTERFACE

EASY-TO-UNDERSTAND VISUAL INTERFACE WITH 4- INCH LCD ensures proper machine setup and parameter selection, reducing setup time and increasing weld time. All operations are performed in one interface, without turning pages

Quick-Access to the process you need. The icons across the top illuminate when active. Soft-Key buttons near the display select functions accurately – make setup or change quick, easy, and intuitive

ULTRAMIG-230 EXPERT internal 4-roll wire feeder for stable aluminum wire feeding

Four roller wire feeder

PMCT-205 is equipped with a powerful four-wheel drive wire feeder and a more solid wire feed shaft. It provides a more stable and smooth wire feeding system for welding, especially for feeding aluminum welding wire which is very soft.

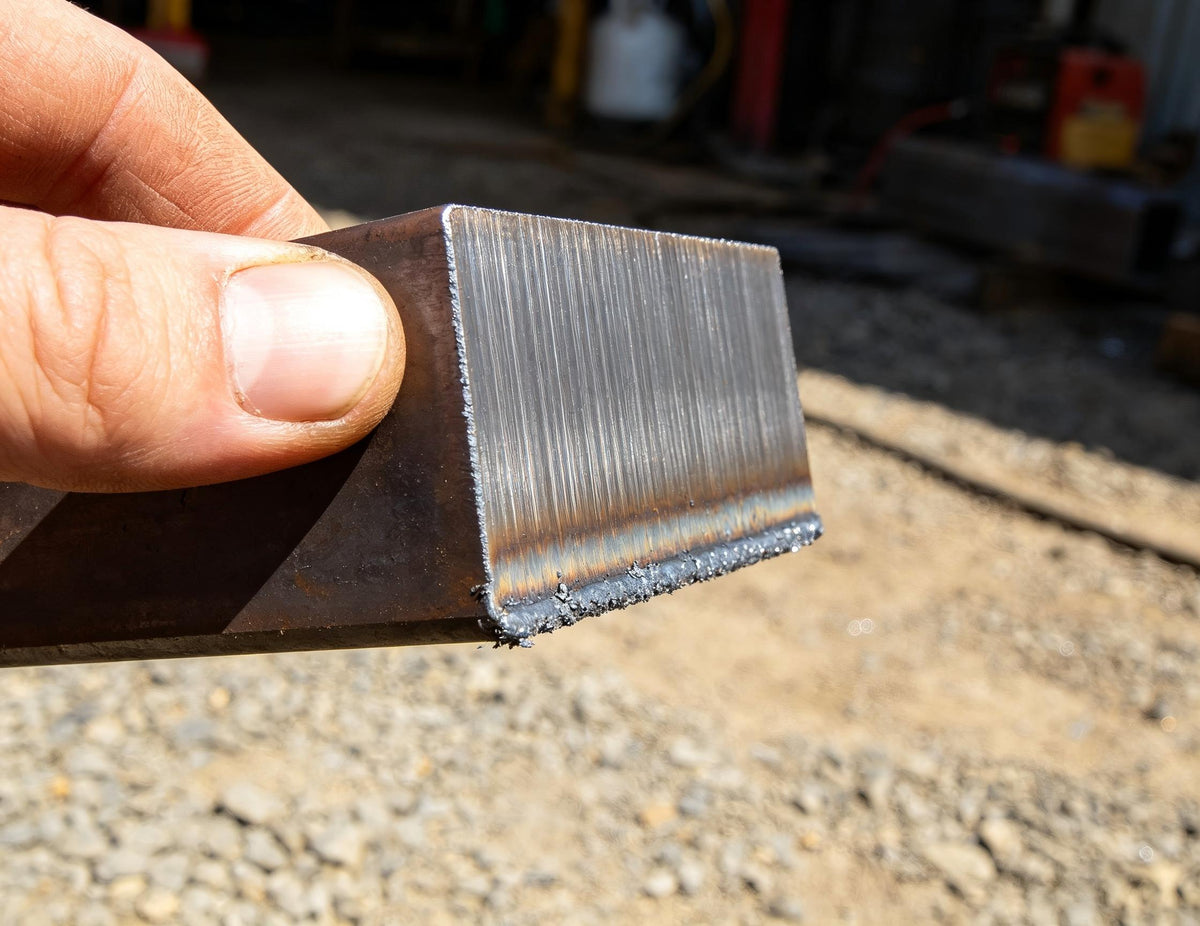

Clean Cut for Thin & Thick Metal

PMCT205 multi‑process welder with pilot‑arc plasma cutting. Clean low‑dross cuts from 0.5mm thin sheet up to 15mm clean cut /20mm severance cut. Cut carbon steel, stainless steel & aluminum with minimal burrs.
